Generac Power Systems RTSN600K3 Details and Specifications

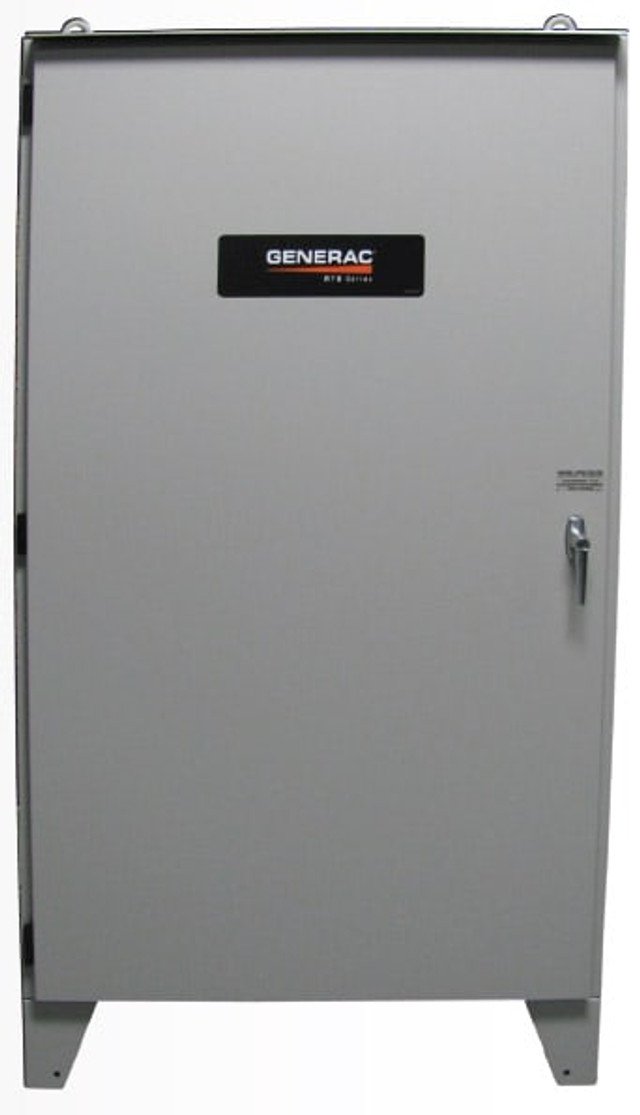

Generac 600 Amp ATS 277/480 3 Phase NEMA 3R Cabinet.
The transfer switch monitors utility power and signals the generator to start when utility power is interrupted. When utility power returns, the transfer switch returns the electrical load from the generator back to the utility. This ensures your most important electrical loads are powered, within seconds, even when you’re away.
All RTS transfer switches are housed in a NEMA/UL Type 3R enclosure, with electrostatically applied and baked powder paint. The Heavy Duty Generac Contactor is a UL recognized device, designed for years of service. The control at the generator handles all the timing, sensing and exercising functions. Designed to operate with the digital Nexus controller used on liquid-cooled QT series gaseous generators from 22- 150 kW.
Product Specifications
Model
Model Number; RTSN600K3
Manufacturer; Generac Power Systems
Made In USA; Yes
Voltage; 277/480V Three Phase
Enclosure; Nema 3R Indoor/Outdoor
UL Listed; Yes
Type; Automatic Transfer Switch
Transfer Switch Model; RTS
Features
Weight; 353.5 lbs.
Dimensions; 66L x 36W x 21D
Warranty Information
Consumer Warranty; 5 Year Limited
Commercial Warranty; 5 Year Limited
Alternator
Frequency; 60 Hz
Fuel
Fuel Gauge; No
Transfer Switches
Transfer Switch Amps; 600 Amps
Transfer Switch Circuits; Whole Panel
