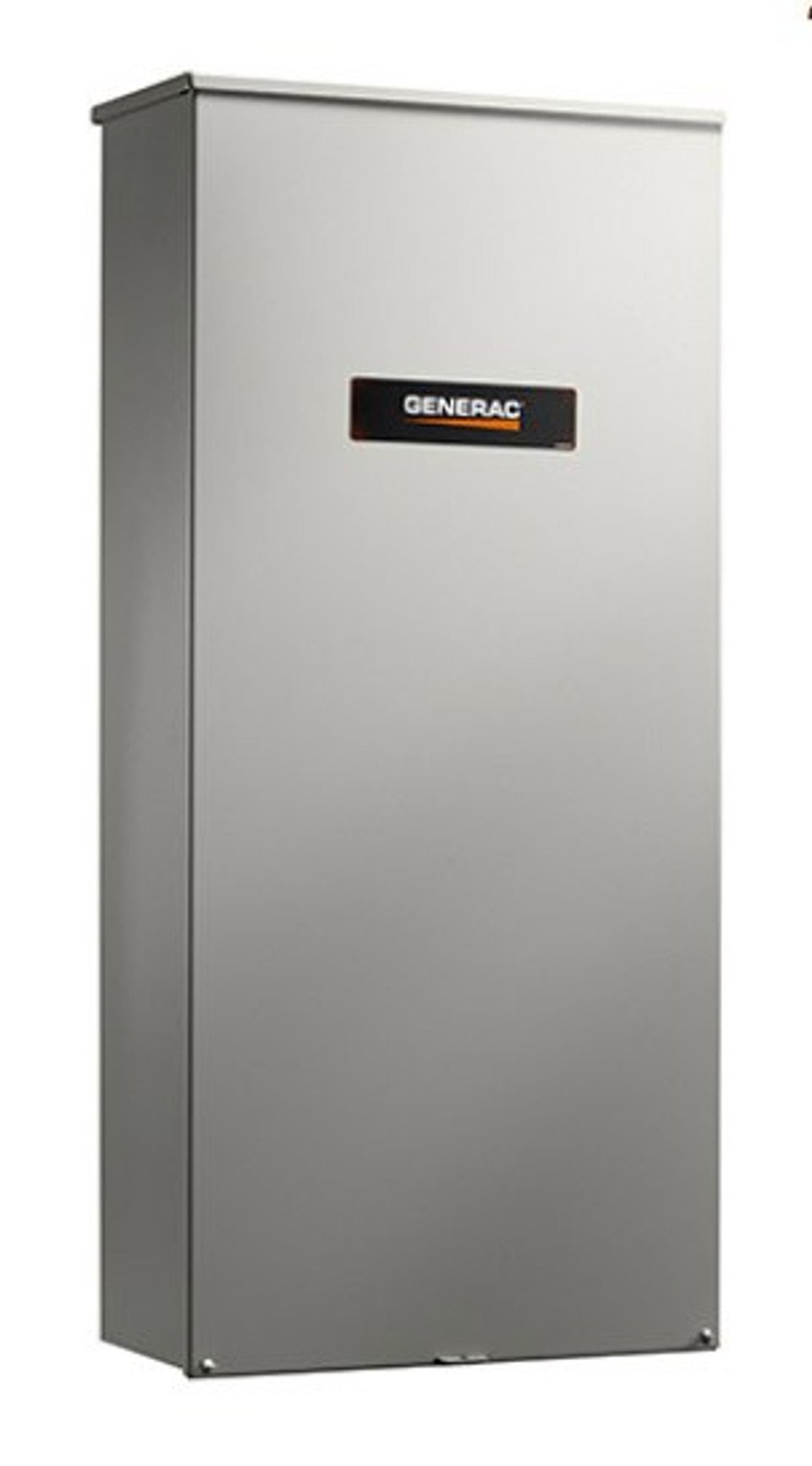

Generac 100 Amp Service Rated Automatic Transfer Switch 3 Phase 277/480V, Nema 3R
Generac Three Phase Automatic Transfer Switches are designed for use with three phase generators that utilize an Evolution or Nexus Controller. Â The Service Entrance Transfer Switches are open transition and listed to UL 1008 for Optional Standby applications. Â Enclosures are provided with integrated deadfront for safe operation of the Service Disconnect. Â Service Disconnects are listed to UL 489. The Service Entrance Switches are designed for a single person installation.
All Generac switches offer contacts that are silver composite which resists pitting or burning, ultimately leading to longer life and the reliability you expect.
Standard Features:
Housed in an aluminum Nema 3R enclosure, with electrostatically applied powder coating (indoor/outdoor rated).
The Heavy Duty Generac Contactor is a UL recognized device.
The controller at the generator handles all the timing, sensing, exercising functions and transfer commands.
Covered by a 5 Year Limited Warranty.
Product Specifications
Model
Model Number; RTSW100K3
Manufacturer; Generac Power Systems
Made In USA; Yes
Voltage; 277/480V Three Phase
Enclosure; Nema 3R Indoor/Outdoor
UL Listed; Yes
Type; Automatic Transfer Switch
Transfer Switch Model; RTSW100K3
Features
Dimensions; 48H x 21.82W x 10.06D
Warranty Information
Consumer Warranty; 5 Year Limited
Commercial Warranty; 5 Year Limited
Fuel
Fuel Gauge; No
Transfer Switches
Transfer Switch Amps; 100
Transfer Switch Circuits; Whole Servie
Ats Poles; 3 Pole
Transfer Switch Weight; 50 lbs
