Meter Mounted Transfer Switch with Load Center
The Generac RXGUW200A3 is a Utility Meter Base with 200 Amp Automatic Transfer Switch and 42 Circuit Load Center. The all-in-one design combines a service-rated automatic transfer switch, meter socket, and load center. Meets NEC requirements for an emergency disconnect. The transfer switch can manage up to 4 central air conditioners without additional hardware. Manage up to 4 additional 240-volt loads (for a total of 8) like electric water heaters and wells pumps with smart management modules.
Note:Â Use of an integrated Meter Base Transfer Switch requires utility approval. Check with your local Electric Utility and Community Building Department before selecting this Meter Base Transfer Switch with Load Center.
- Service Entrance Rated
- 200 Amp Automatic Transfer Switch
- Integrated Meter Socket
- Smaller Footprint
- Intelligent Load Management
Integrated Meter Base Automatic Transfer Switch

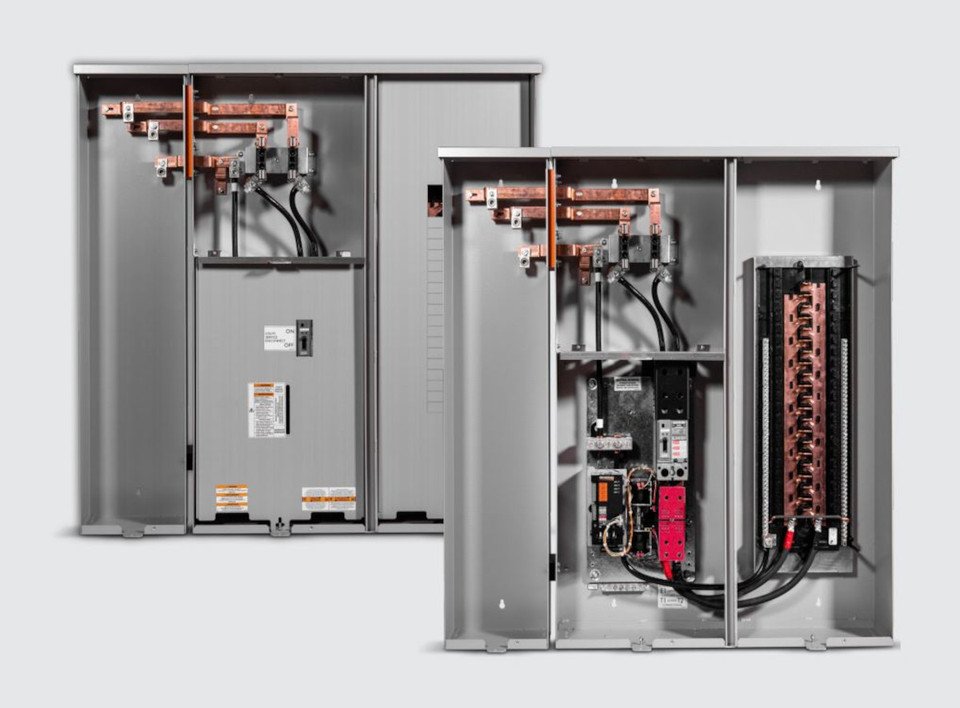

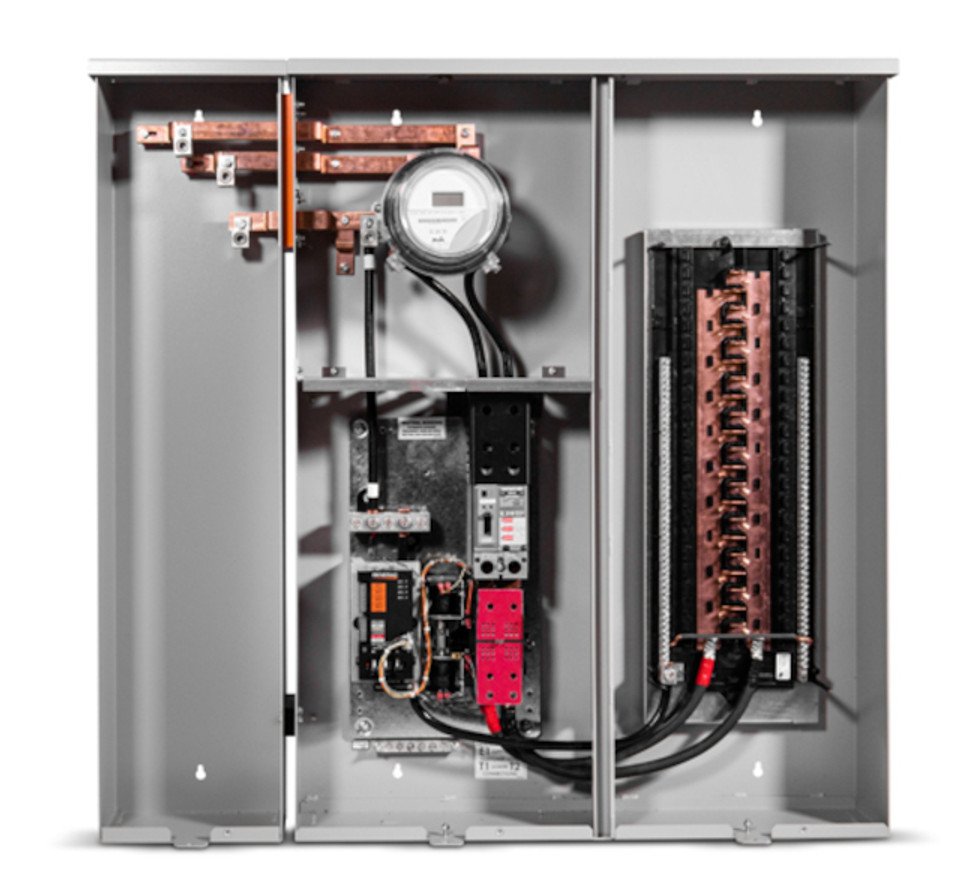

Integrated Meter Base with 200 Amp Transfer Switch and 42-Circuit Load Center plus Side Car Field Wiring Cabinet. The all-in-one design conveniently combines the meter base, whole house transfer switch, and circuit breaker panel into a single unit for a seamless and aesthetic installation that eliminates clutter and simplifies installation.
| ETL Listed under UL-1008 |
| 120/240-Volt 200-Amp Single Phase Service Entrance Rating |
| Aluminum NEMA 3R Enclosure for outdoor installation |
| NEC Compliant |
| California Code Compliant |
| Open Transition Transfer Switch Contactor |
| Smart AC Load Management included for up to 4 Air Conditioners |
| Add up to 4 Generac Smart Management Modules |
| Dimensions (inches) 42.5H x 43.4W x 7.3D |
Generac’s Automatic Transfer Switch was designed for use with Evolution and Nexus Controllers in Generac Standby Generators. The Transfer Switch Meter Base combination meets NEC requirements for an emergency disconnect. Generac’s Heavy-Duty Contactor is ETL recognized and designed for years of service with a Generac 5-Year Warranty.

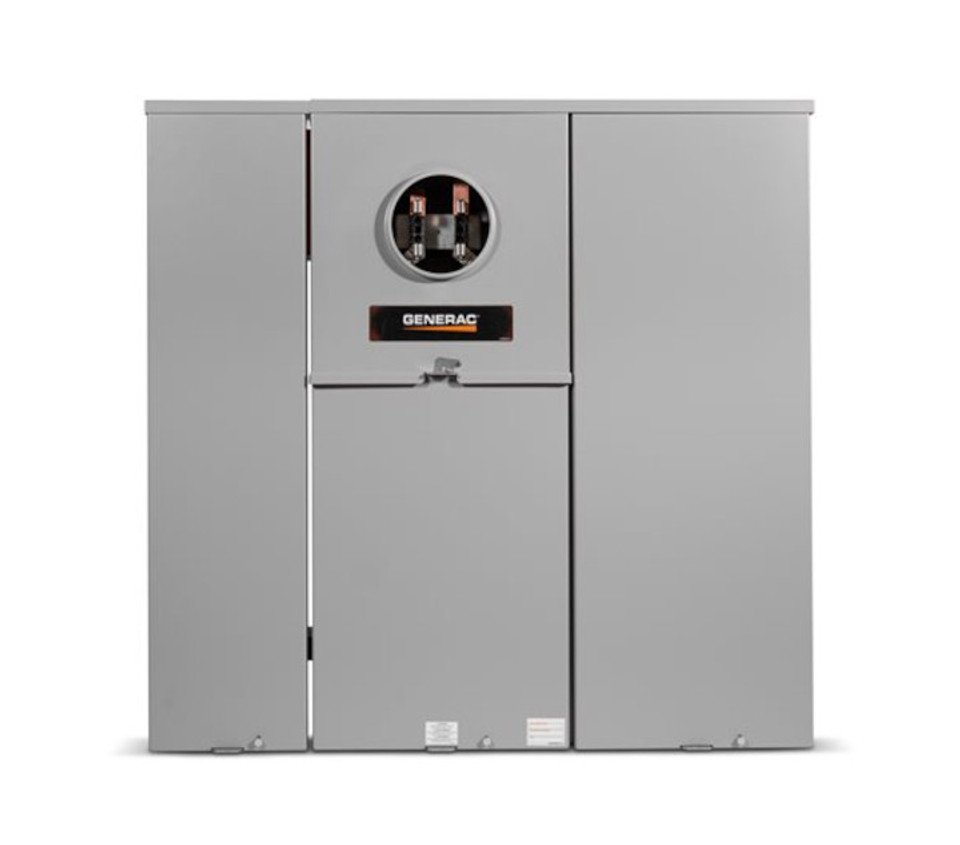

Utility Meter Base with Transfer Switch
The meter base transfer switch includes a 4-jaw meter socket, ringless cover, and horn bypass. Optional accessories like a ring-type meter cover and 5th jaw metering kit to meet local code requirements are available for separate purchase.
The Generac RXGUW200A3 Integrated Utility Meter Base Transfer Switch with 42-Circuit Load Center comes with Generac’s 5-Year Limited Warranty.
Product Specifications
Model
Model Number; RXGUW200A3
Manufacturer; Generac Power Systems
Made In USA; Yes
Voltage; 120/240-Volts AC Single Phase
Enclosure; Aluminum NEMA 3R
UL Listed; ETL under UL-1008
Type; Automatic Transfer Switch
Transfer Switch Model; RXGUW200A3
Features
Weight; 49.0 lbs
Dimensions; 43.4W x 32.5H x 7.3D
Warranty Information
Consumer Warranty; Generac 5-Year Limited Warranty
Fuel
Fuel Gauge; No
Transfer Switches
Transfer Switch Amps; 200 Amps
Transfer Switch Circuits; 42 Circuit Load Center
Ats Poles; 2
Transfer Switch Weight; 49.0
