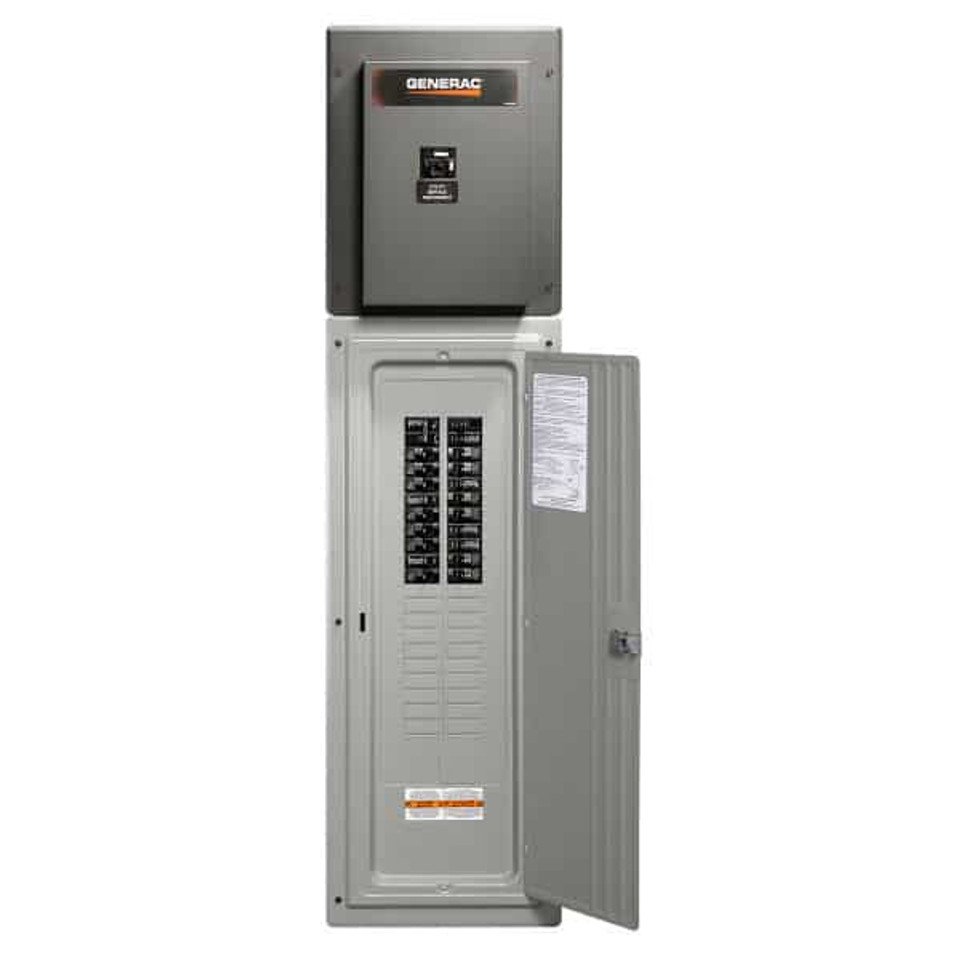

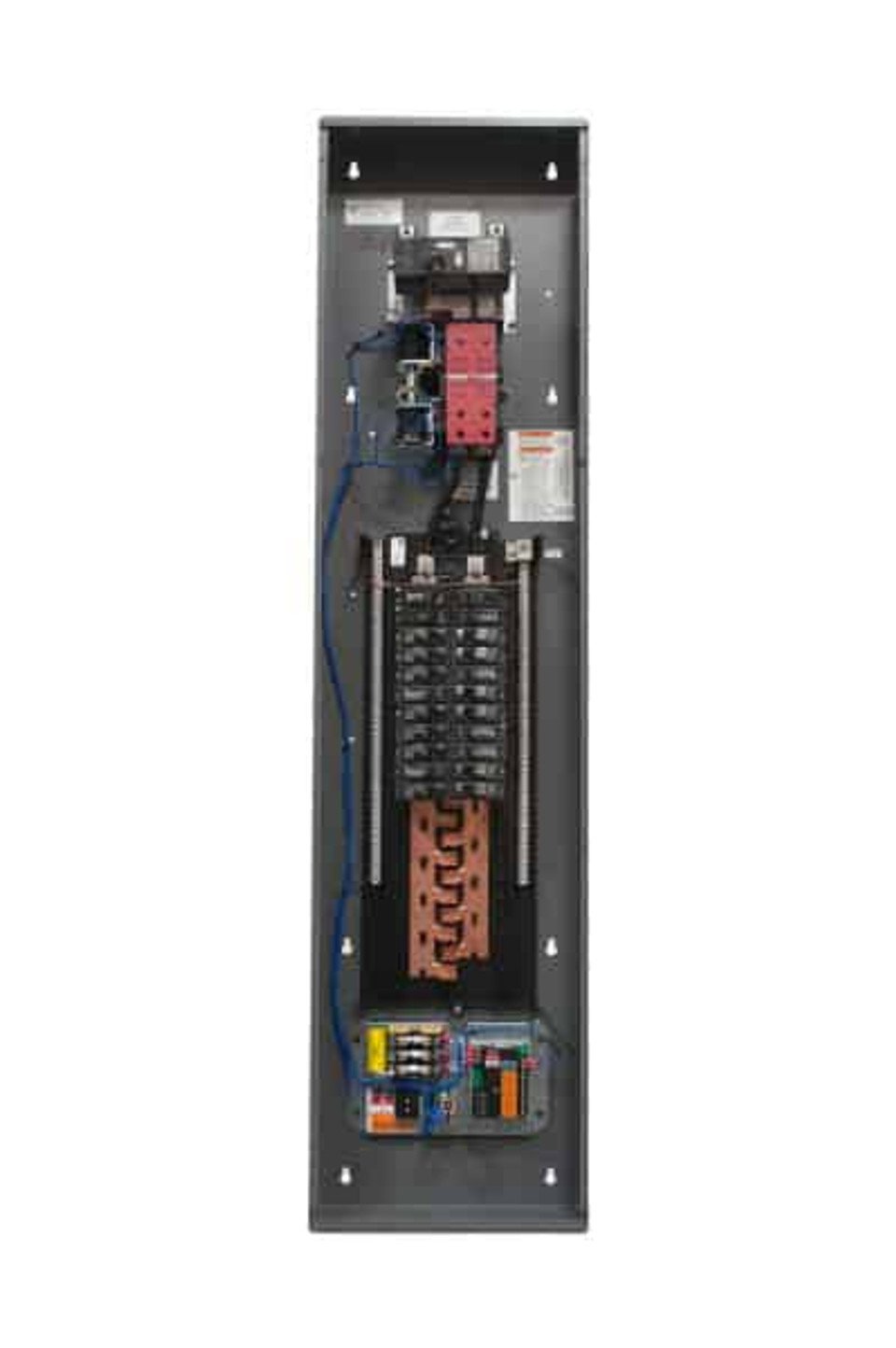

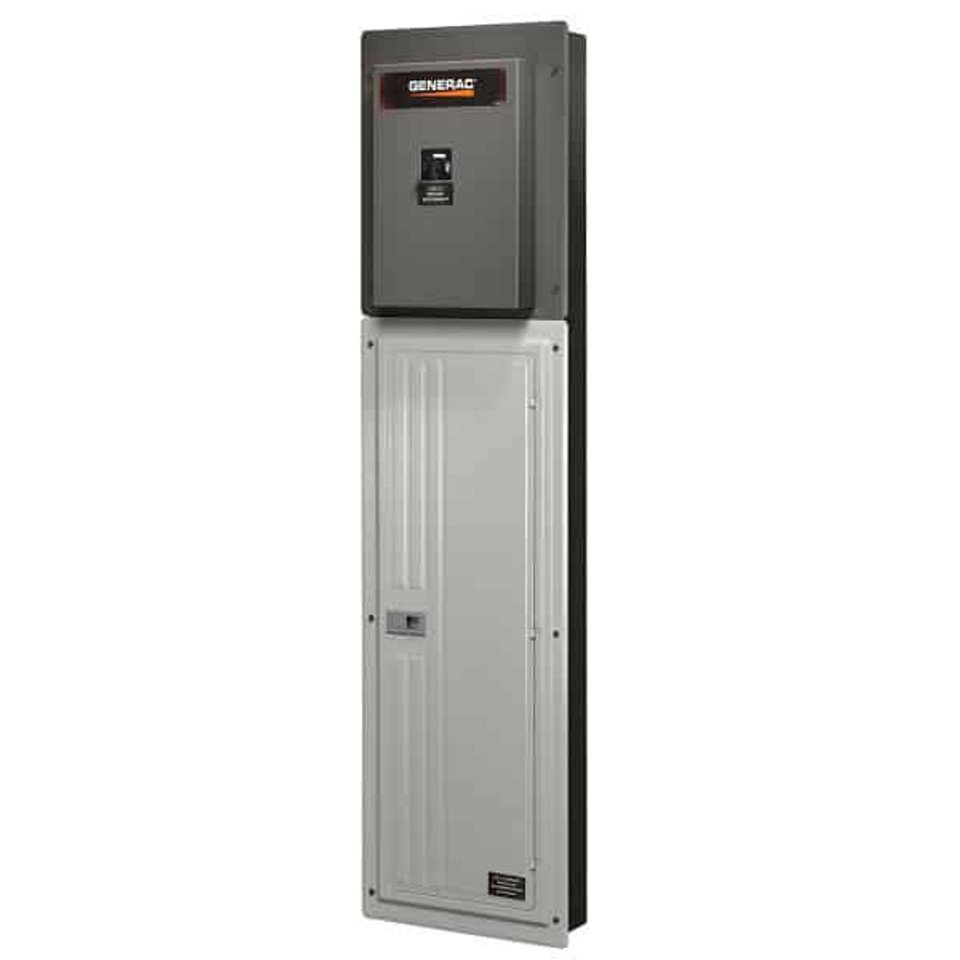

Generac GenReady Whole House 200 Amp Service Rated NEMA 1 with 48 space, 60 Circuit Load Center
The GenReady Whole House is a service equipment rated panel that integrates a main breaker, transfer switch, and load center. This hybrid panel allows for seamless integration of standby generators. Installation can be completed during any new construction or existing panel upgrades, and does not require the generator installation at the same time. Saving on installation time and space.
5-Year Limited Warranty
Designed for use with single phase generators that utilize the Evolution or Nexus controller.
Steel NEMA 1 configuration for indoor installations
Integrated load center accepts 1″ standard, GFCI, AFCI, or tandem circuit breakers from Siemens, Murray, Eaton and Square D.
Utilizing tandem breakers, the load center can be expandable to 60 circuits.
UL Listed for service equipment and consumer safety (UL67 and UL1008)
Product Specifications
Model
Model Number; RXG42SHA1
Manufacturer; Generac Power Systems
Made In USA; Yes
Voltage; 120/240V Single Phase
Enclosure; NEMA 1 – Indoor Only
UL Listed; Yes
Type; Automatic Transfer Switch
Transfer Switch Model; RTG42SHA1
Features
Weight; 64 lbs
Dimensions; 14.36L x 4.81W x 58.09H
Warranty Information
Consumer Warranty; 5 Year Limited
Commercial Warranty; 5 Year Limited
Fuel
Fuel Gauge; No
Transfer Switches
Transfer Switch Amps; 200
Transfer Switch Circuits; 42 Space Load Center
Ats Poles; 2 Pole
Transfer Switch Weight; 64 lbs
