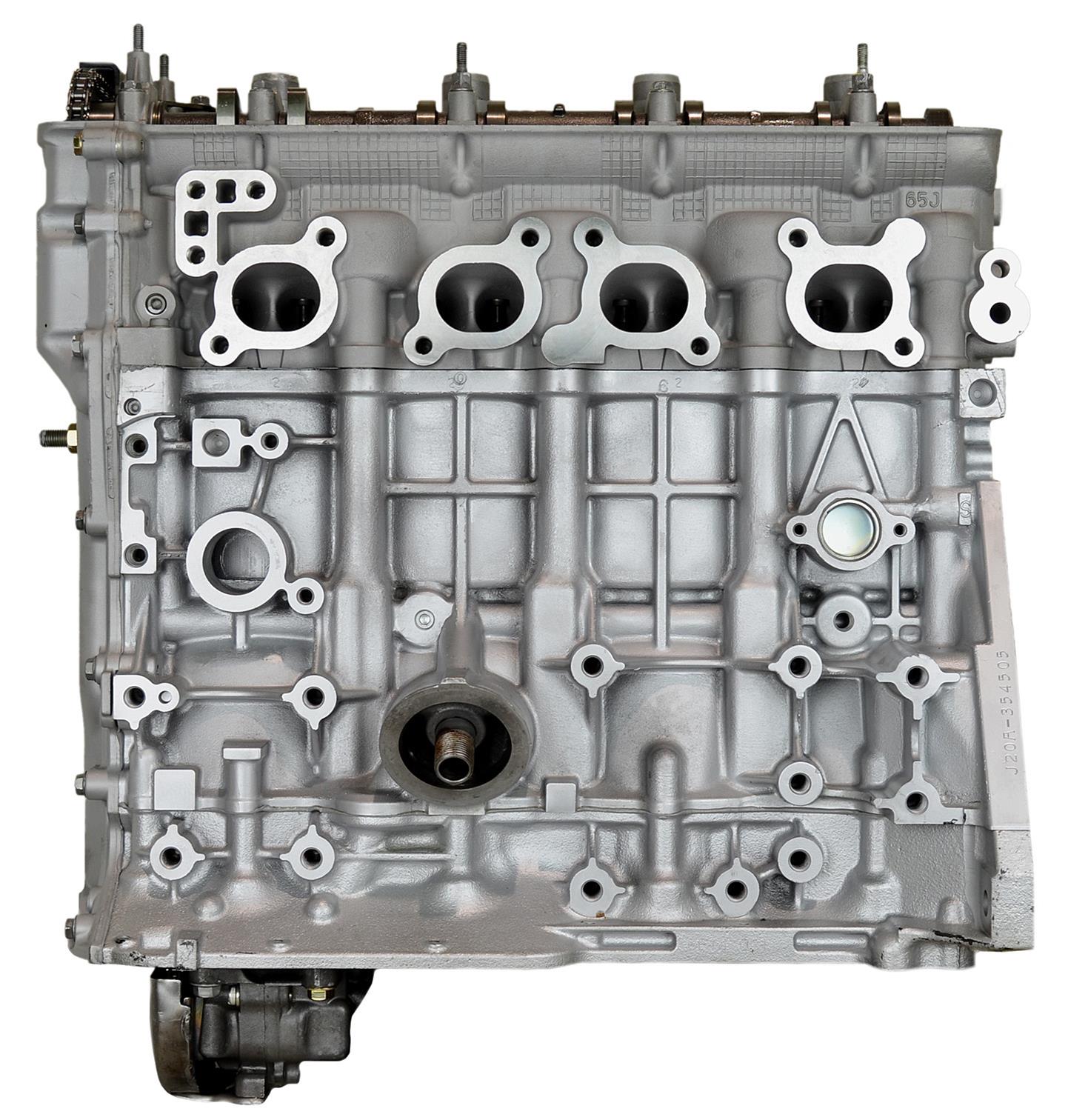

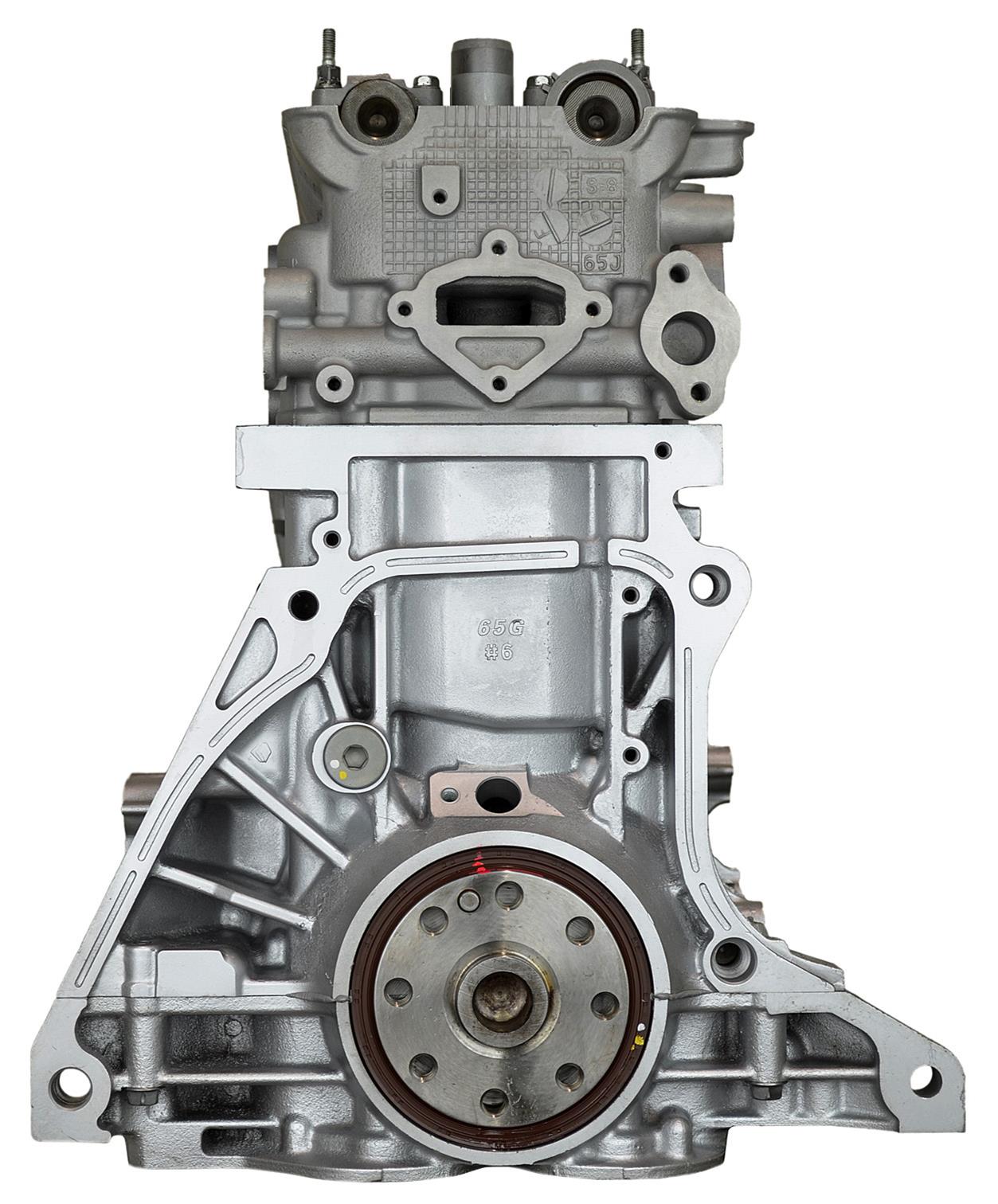

VEGE 407B Remanufactured 2.0L Long Block Crate Engine – Suzuki J20A

The Premium 2.0L Crate Engine for Suzuki Vehicles

The VEGE 407B remanufactured long block crate engine is a premium-quality replacement for Suzuki vehicles equipped with the 2.0L J20A DOHC four-cylinder engine . This 2.0L/1995cc engine is a direct-fit replacement for a range of Suzuki applications, providing budget-friendly performance without compromising on quality . With VEGE’s over 80 years of remanufacturing expertise, each engine is reverse-engineered to remove original factory defects and reconditioned to meet or exceed OEM specifications.

Whether you’re restoring a Suzuki Grand Vitara, SX4, XL7, or performing a replacement, this 407B crate engine delivers the reliability and durability that import enthusiasts demand.

What Makes the VEGE 407B a Smart Replacement Choice?

The VEGE 407B long block is far more than a simple used engine—it’s a thoroughly remanufactured assembly that undergoes rigorous quality control . As part of VEGE’s extensive import engine program, this 2.0L four-cylinder is designed specifically for Suzuki’s J-series engine family.

VEGE’s advanced remanufacturing process begins with complete disassembly of the donor core, stripping it back to component parts for inspection and cleaning. Certified technicians then recondition components to factory specifications, replacing wearable parts or machining them back to OE standards . The engines are thoroughly tested and calibrated to deliver maximum performance and long-term durability.

Suzuki J20A Engine Background

The Suzuki J20A is a 1,995 cc inline-four petrol engine produced since 1998, featuring a dual overhead camshaft (DOHC), 16-valve layout, and multi-point fuel injection (MPFI) . It features an aluminum cylinder block with cast-iron liners, an aluminum 16-valve cylinder head, and a timing chain drive . The engine is known for its simple design and balance of on-road performance for compact SUVs and crossovers.

The J20A powered the Suzuki Grand Vitara (JT), XL7 (JL), and SX4 (JS) from 2005–2014 . It was naturally aspirated and distinct from the later J20B with VVT.

VEGE 407B Engine Specifications

Based on the product specifications from World Engine Traders  and Summit Racing :

Please note: Ancillary components such as the intake manifold, throttle body, oil pan, valve covers, and harmonic balancer must be transferred from your original engine . Engine includes oil pump and gasket .

VEGE Remanufactured Engines – Quality You Can Trust

Reverse-Engineered for Quality

Each VEGE engine is reverse-engineered to ensure that any original defects are removed . Certified technicians recondition the long blocks to factory specifications, replacing wearable parts or machining them back to OE standards. The engines are thoroughly tested and calibrated to deliver maximum performance and long-term durability .

Certified Quality and Testing

VEGE’s advanced production process is backed by over 80 years of experience, ensuring performance and reliability on par with new OEM products. Throughout reassembly, every VEGE engine must pass rigorous quality tests at every stage of the rebuilding process.

VEGE Gasoline Engine Warranty: 3-year / unlimited mileage

What’s Included with Your VEGE 407B Long Block?

When you purchase this VEGE 407B long block from NH Race Engine, you receive a fully assembled remanufactured engine ready for installation :

• ✅ Remanufactured engine block

• ✅ Reconditioned DOHC cylinder head

• ✅ Internal rotating assembly (crankshaft, connecting rods, pistons)

• ✅ Camshaft and valvetrain components

• ✅ Timing cover

• ✅ Water pump

• ✅ Oil pump and gasket

Important Note: This is a long block assembly. Ancillary items such as the intake manifold, throttle body, oil pan, valve covers, and harmonic balancer must be transferred from your original engine .

407B Engine Applications and Fitment

Compatible Vehicles

The VEGE 407B is a direct-fit replacement for Suzuki vehicles equipped with the 2.0L J20A engine . Compatible applications include:

Suzuki Grand Vitara (JT):

• 2005-2014 Suzuki Grand Vitara 2.0

Suzuki XL7 (JL):

• 2006-2009 Suzuki XL7 2.0

Suzuki SX4 (JS):

• 2006-2013 Suzuki SX4 2.0 GLX, 2.0 Sport

Additional Fitment:

• Suzuki Escudo

• Suzuki Aerio

Technical Specifications

• Engine Code: J20A

• Displacement: 1,995 cc

• Configuration: Inline-4, DOHC, 16-valve

• Bore × Stroke: 84.0 mm × 90.0 mm

• Compression Ratio: 9.7:1

• Power Output: 132–143 hp

• Fuel System: Multi-point fuel injection (MPFI)

• Timing System: Chain-driven DOHC

• Cylinder Block Material: Aluminum

• Cylinder Head Material: Aluminum

• Valve Adjustment: Shim adjusting bucket lifters

Emissions Compliance

Important: This engine is designed for replacement use in vehicles originally equipped with this engine configuration. Verify emissions compliance for your specific application and jurisdiction.

VEGE 407B Engine FAQs

What vehicles use the VEGE 407B engine?

The 407B is designed as a direct replacement for Suzuki vehicles equipped with the 2.0L J20A engine, including Grand Vitara (JT), XL7 (JL), and SX4 (JS) models .

What type of valvetrain does the 407B have?

The 407B features a DOHC 16-valve valvetrain .

What’s included with the VEGE 407B?

The 407B comes as an assembled long block including the cylinder head, timing cover, water pump, oil pump, and gasket . Intake manifold, throttle body, oil pan, valve covers, and harmonic balancer are not included .

What warranty comes with the VEGE 407B engine?

VEGE gasoline engines are backed by a comprehensive 3-year / unlimited mileage warranty.

What is the displacement of the 407B engine?

The 407B has an actual displacement of 2.0L / 1995cc .

What material are the block and heads made of?

The VEGE 407B features an aluminum engine block and aluminum cylinder head, consistent with the J20A engine design .

Does the J20A have variable valve timing (VVT)?

Early versions of the J20A did not have VVT . The later J20B variant introduced VVT.
