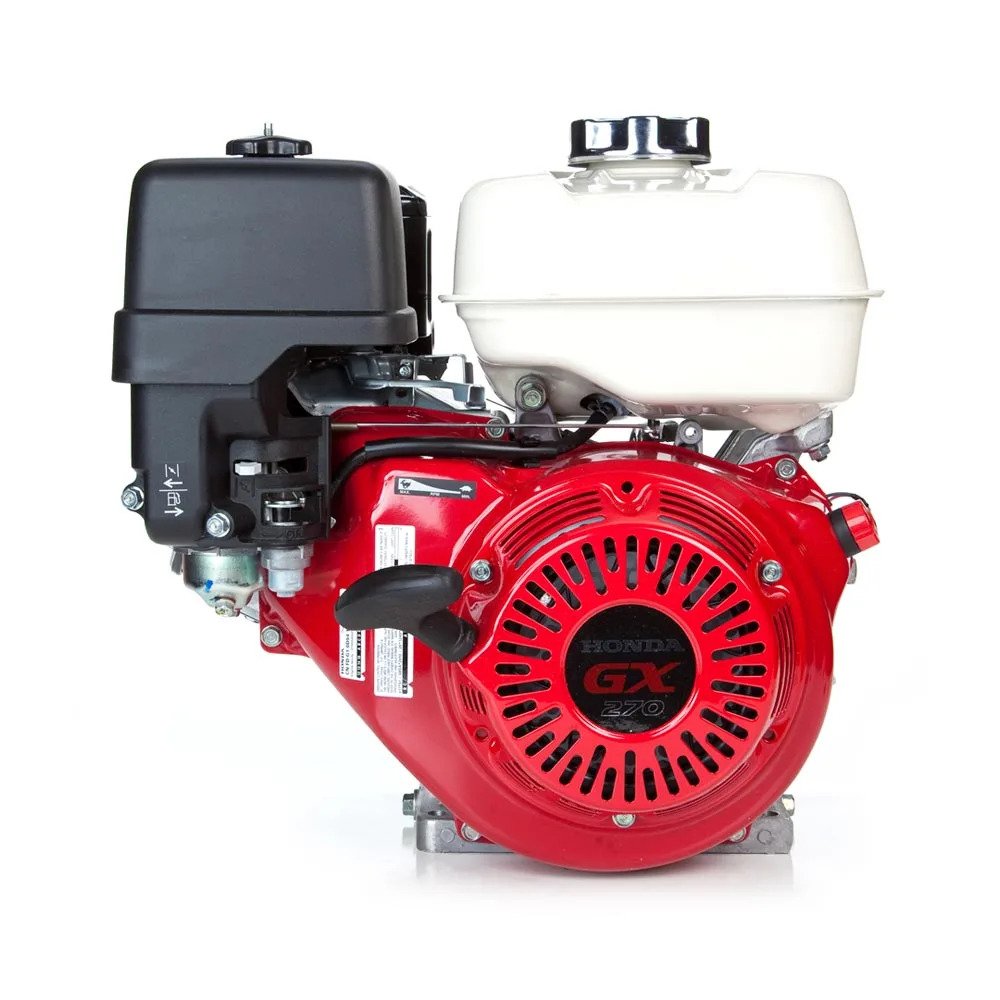

Honda GX270 QA2 (GX270UT2QA2) horizontal OHV engine is 270cc and puts out 8.5 net HP. This Honda GX has a 1″ x 3-31/64″ crankshaft with a 1/4″ keyway (Tapped 7/16-20). The engine has a recoil starter, a standard muffler with spark arrestor and deflector plus an oil alert system. Honda GX270 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Common applications for this engine include water pumps, small vehicles, commercial lawn and garden equipment, generators and more. Buyer protection package provides three-year commercial engine warranty. 49-State Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit. n
Key Specifications
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX270-QA2 |
| REPLACES MODELS | GX240U1QA2, GX270-QA2, GX270UT2QA2, GX270UT1QA2, GX270UT2QA2, GX270 QA2, GX270QA2, GX270K1-QA2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 64 |
| DISPLACEMENT | 270cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 1″ x 3-31/64″ |
| CRANKSHAFT LENGTH | 3-31/64″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT KEYWAY WIDTH | 1/4″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 38 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | Yes |
| IGNITION SYSTEM | Digital CDI with Variable Ignition Timing |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 5,6-1/2 |
| NOTES | Engine Notes: |
| PTO HEIGHT | 5 – 1/4 |
