Cummins C20D6 20 kW Diesel Generator 120/240 Volts Single Phase | C20D6-A063P962

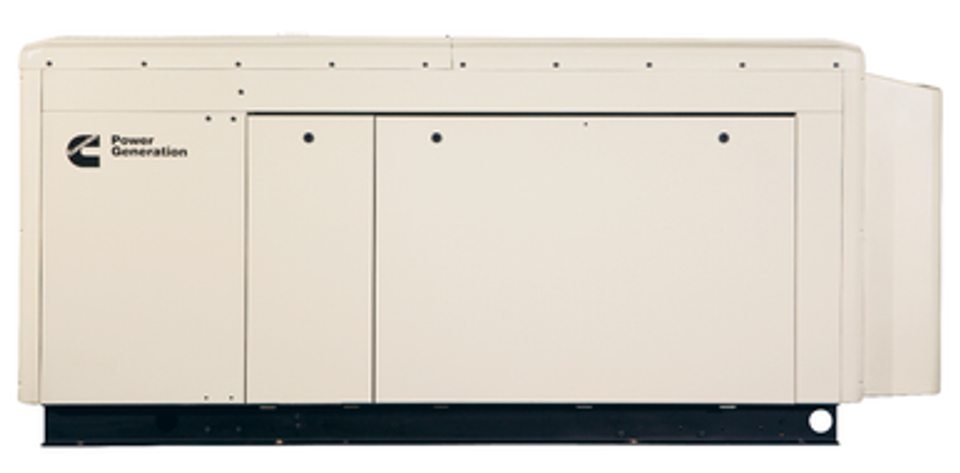

Cummins C20D6 20kW Diesel Generator

120/240 Volts Single Phase     20kW      Heavy-Duty Engine      PowerCommand 1.1

The preconfigured Cummins 20kW Diesel Generator features a robust design for operation in extreme environments and conditions. The standard cooling system handles temperatures up to 122° Fahrenheit and comes equipped with coolant heaters for reliable starts in temperatures to -40° Fahrenheit. Count on reliable power and fast response to changing loads from the rugged 2.2 liter 4-cycle diesel engine.

The C20D6 20 kW Diesel Generator is UL CARB 2024 compliant, UL-2200 listed, and meets U.S. EPA SI Stationary Emission Regulation 40 CFR, Part 60.

For sale and use in all 50 states.

Sound Level 1 Sandstone Enclosure

C20DG 20 kW Diesel Generator Important Notes

• Requires a Fuel Tank (Sold Separately)
• Rated at 18.2kW for Prime Power Applications
• Requires a 12-Volt 550 Cold Cranking Amps Battery

C20D6 20kW Generator Fuel Consumption

Cummins 20kW Generator Diesel

A flexible exercise mode allows a schedule to meet the unique preferences of each customer by controlling the time, duration, and frequency of the exercise cycle to reduce noise, emissions, and fuel use.

Cummins added PowerCommand 1.1 electronic control for complete integration of the generator system. The system features automatic remote starting and stopping, precise frequency and voltage regulation, alarm and status displays, and auto shutdown after detecting faults. Cummins C20D6 20 kW diesel generator sets are NFPA110 Level 1 compliant.

PowerCommand also implements industry-leading self diagnostic capability. Critical generator component design allows completion of service and maintenance in the shortest time possible.

Cummins 20kW Diesel Generator Engine and Alternator

The D2200 Engine is a 2.2 liter inline diesel engine designed for reliable power and exceptional response to changing load conditions. It comes equipped with a 50-amp battery charging alternator. Rated at 1800 RPM, the engine uses a spin-on oil filter with pressure relief valve.

Cummins brushless 4-pole revolving field alternator is drip proof with a 2/3 pitch rotor for a no-load to full-load waveform distortion of less than 5% and less than 3% for any single harmonic. A direct drive centrifugal blower cools the alternator.

Product Specifications
