2019 HONDA 75 HP BF75D4LRTA OUTBOARD MOTOR

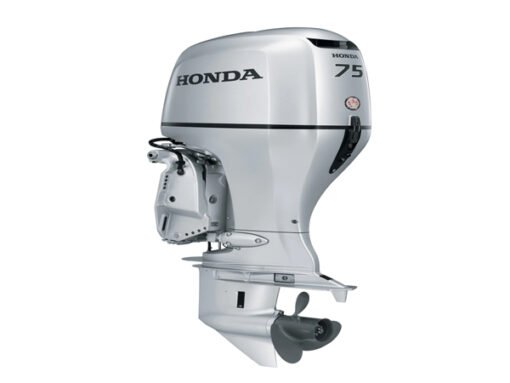

2019 Honda 75 HP BF75D4LRTA Outboard Motor

Engine

Engine Type: 4-Stroke SOHC 4 Cylinder/16 Valves

Bore x Stroke: 3.0 x 3.5 in. (73 mm x 89.4 mm)

Displacement: 91.4 cu.in. (1,496 cc)

Starting: Electric

Dimensions

Shaft Length: 20 in. (508 mm)

Weight: 359 lb. (163 kg)

General

Trim Method: -4 deg. to +16 deg.

Propshaft Horsepower: 75 hp @ 5,500 rpm

Full Throttle Operating Range: 5,000-6,000 rpm

Gear Ratio / Shift: 2.33:1 / F-N-R

Fuel Induction: Programmed Fuel Injection

Alternator: 44-Amp (554 watt)

Cooling: Water Cooled

Warranty: True 5 Warranty

Engine

Type: 4-Stroke SOHC 4 Cylinder/16 Valves
Displacement: 1,496 cc (91.4 cu.in.)
Bore & Stroke: 73 mm x 89.4 mm (3.0 x 3.5 in.)
Full Throttle RPM Range: 5,000-6,000 rpm
Rated Power: 75 hp @ 5,500 rpm
Cooling System: Water Cooled
Fuel: Unleaded Gas (87 Octane)
Fuel Delivery: Programmed Fuel Injection
Ignition System: MicroComputer Programmed
Starting System: Electric
Exhaust: Through Hub
Lubrication: Wet Sump
Trim Range: -4 deg. to +16 deg.
Tilt Range: 68 deg.

Drive

Gear Ratio: 2.33:1
Gear Shift: F-N-R
Alternator (Electric Start): 44-Amp (554 watt)
Battery Charging Power: 35 Amp
Propeller: Optional
Power Trim & Tilt: Standard
Oil Pressure Alert: Standard
Temperature Alert: Standard
Rev-Limiter: Standard
Speedometer Pickup: Standard

Dimensions

Overall Width: 480 mm/18.9 in.

Transom Height

L Type: 508 mm/20 in.

Dry Weight

L-Type: 163 kg/359 lb.
