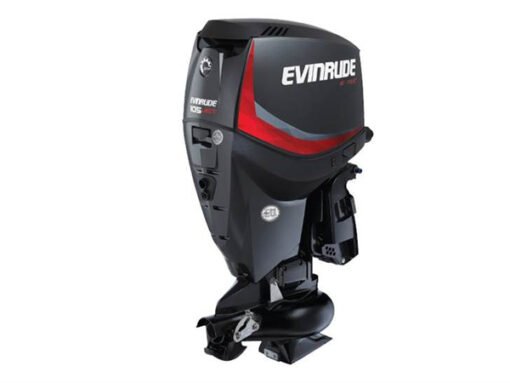

2019 EVINRUDE 105 HP E105DJL OUTBOARD MOTOR

2019 Evinrude 105 HP E105DJL Outboard Motor
Engine
Engine Type: V6 60 deg. E-TEC D.I.
Bore x Stroke: 3.62 x 2.60 in. (92 x 66 mm)
Displacement: 158.2 cu.in. (2592cc) 2.6L
Starting: Electric
Dimensions
Shaft Length: 20 in. (508 mm)
Weight: 427 lb. (194 kg)
General
Trim Method: FasTrak™ Power Trim and Tilt
Propshaft Horsepower: 105 hp
Full Throttle Operating Range: 5400-6000 rpm
Gear Ratio / Shift: 1:1
Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
Alternator: 133 Amps Total / 50 Net Dedicated
Steering: Remote
Warranty: 3-Year, Non-Declining


Features

Thrust Control Gate: The simple technology of the two-position lift gate gives you forward and reverse capabilities without sacrificing durability.
Power for the Skinniest Water: A combination of the unmatched direct-injection torque and best-in-class power-to-weight ratio of the E-TEC Jet Series provides excellent shallow-water performance, unprecedented maneuverability and quiet operation. This outboard series goes where no propeller can go.

Specifications

Engine Model (Color): E105DJL Graphite
Engine Type: V6 60° E-TEC D.I.
Bore x Stroke – in (mm): 3.62 x 2.60 (92 x 66)
Displacement – cu in (cc) L: 158.2 (2592) 2.6L
Gear Ratio: 1:1
Full Throttle RPM Range: 5400-6000 RPM
Weight – lbs (kg): 427 (194)
Starting: Electric
Controls: Mechanical
Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
Alternator Output*: 133 Amps Total / 50 Net Dedicated
Steering: Remote
Trim Method: FasTrak™ Power Trim and Tilt
Trim Range: -6° to 15°
Tilt Range: 75°
Shaft Length – in (mm): 20 (508)
Lubrication: Multi-Point Targeted Oiling
Oil Tank Capacity – gal (L): Accessory 1.8 (6.8), 3 (11.3) & 10 (37.85) Tank Available
Recommended Oil: Evinrude / Johnson XD-100 Oil
Recommended Fuel: 87 Octane
Warranty**: 3-Year, Non-Declining

Emissions Compliance: EPA 2013 / CARB 3 STAR / European Union
