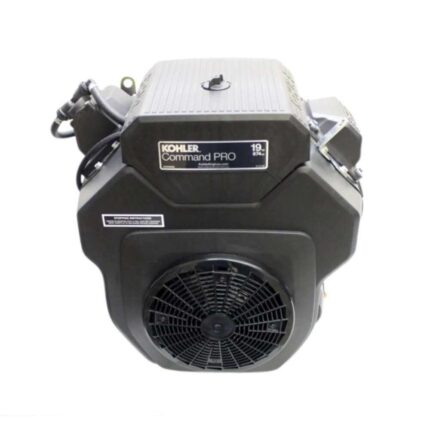

Kohler CH640-3206 674cc 20.5 HP V-Twin OHV Air-Cooled Command PRO Series Basic Gas Engine, 1.125-inch x 4-inch Crankshaft, Electric Start, Image may not reflect exact details of specific engine model, Replaces PA-64595, PA-CH640-3008
Kohler CH640-3206 Horizontal Engine Key Specifications
| BRAND | Kohler |
|---|---|
| MODEL NUMBER | CH640-3206 |
| REPLACES MODELS | PA-CH640-3008, CH640-3008 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 106 |
| DISPLACEMENT | 674cc |
| STARTER TYPE | Electric |
| CRANKSHAFT ORIENTATION | Horizontal |
| FUEL SYSTEM | Gasoline |
| CRANKSHAFT DIMENSIONS | 1.125″ x 4″ |
| CRANKSHAFT DIAMETER | 1.125″ |
| CRANKSHAFT LENGTH | 4″ |
| CRANKSHAFT END TAPPED SIZE | 7/16 – 20 |
| CRANKSHAFT KEYWAY WIDTH | 0.25″ |
| CYLINDERS | 2 |
| AIR CLEANER TYPE | Large Capacity Dual Element |
| FUEL PUMP | Yes |
| OIL COOLER | No |
| OIL CAPACITY | 60 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Smart-Choke |
| CHOKE CONTROL | Manual and Remote |
| BOLT CIRCLE | 5-5/8; 7-3/4 |
| NOTES | Engine Notes: |
