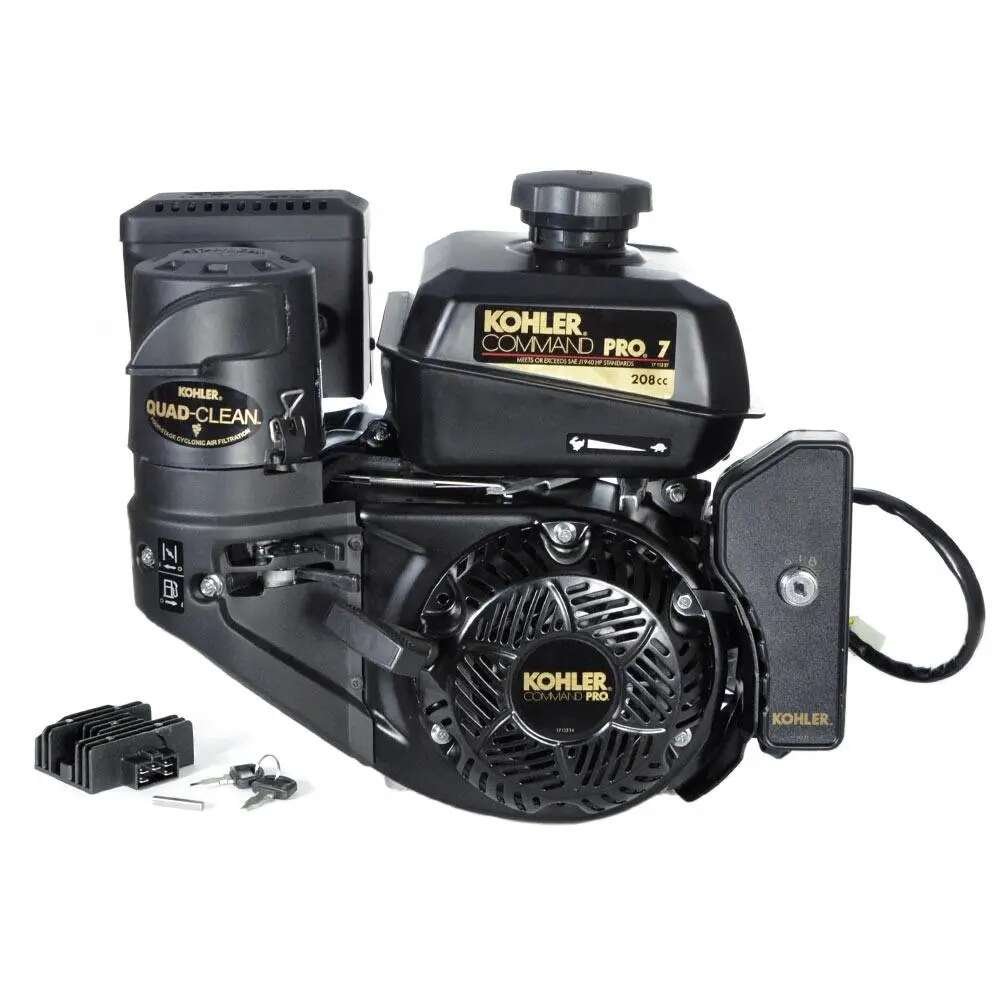

Kohler CH270-3039 Command Pro Engine, 6:1 Gear Reduction, 208cc, 7 HP
Key Specifications
| BRAND | Kohler |
|---|---|
| MODEL NUMBER | CH270-3039 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 58 |
| DISPLACEMENT | 208cc |
| STARTER TYPE | Electric & Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Gear Reduction |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | 6:01 |
| CRANKSHAFT DIMENSIONS | 19mm x 50.9mm |
| CRANKSHAFT DIAMETER | 19mm |
| CRANKSHAFT LENGTH | 50.9mm |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Dual Ball |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron Liner |
| AIR CLEANER TYPE | Quad-Clean 4-Stage All-Season Heavy Duty Cyclonic |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 0.63 qt |
| LOW OIL ALERT | Yes |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual and Remote |
| MAX RPM | 4000 |
| BOLT CIRCLE | 3 -5/8″ |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
