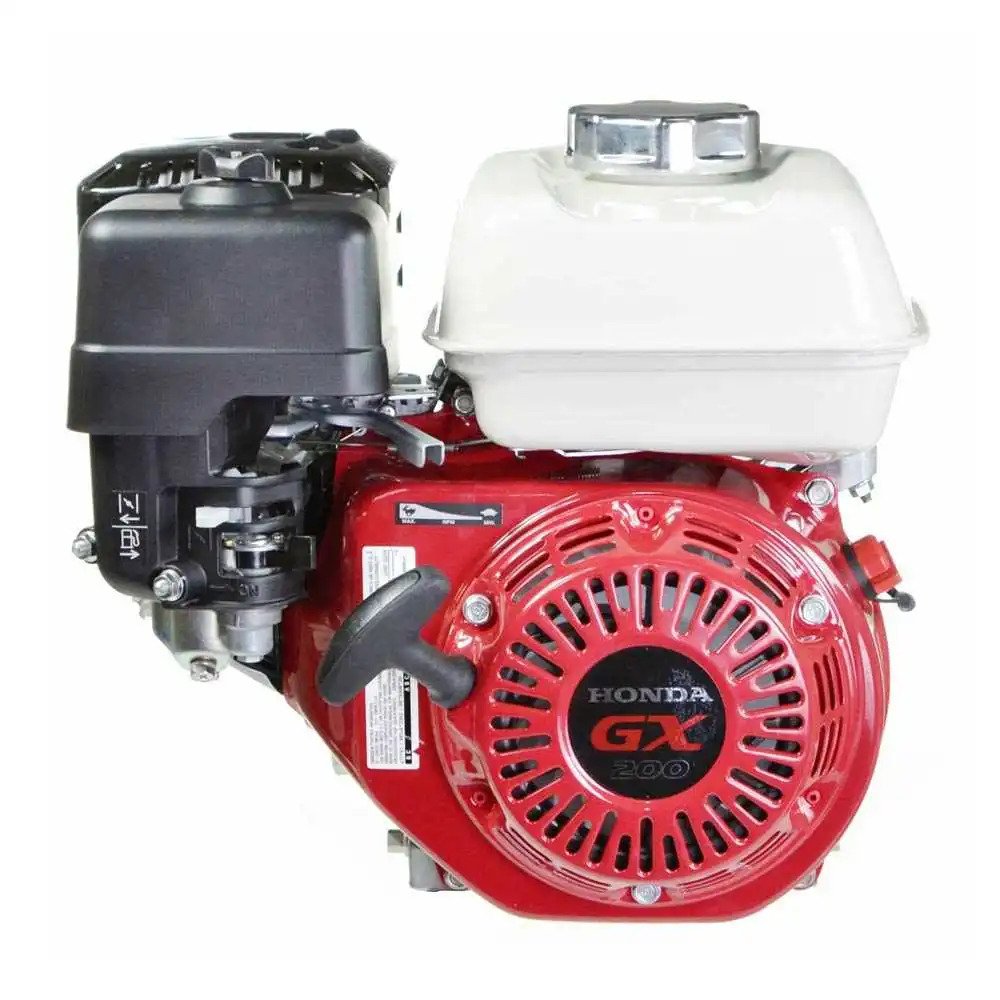

Honda GX200 RH2 (GX200UT2RH2) horizontal OHV 2:1 gear reduction engine is 196cc and puts out 5.5 net HP. This Honda GX has a 22mm x 2.07″ crankshaft. The engine has recoil start, a standard muffler and wet clutch. Honda GX200 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Applications requiring lower speeds are ideal for gear reduction engines. Buyer protection package provides three-year commercial engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.
Key Specifications
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX200-RH2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 51 |
| DISPLACEMENT | 196cc |
| STARTER TYPE | Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Gear Reduction |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | 2:1 with wet clutch |
| CRANKSHAFT DIMENSIONS | 22 mm x 2-3/32″ |
| CRANKSHAFT DIAMETER | 22 mm |
| CRANKSHAFT LENGTH | 2-3/32″ |
| CRANKSHAFT END TAPPED SIZE | M8 x 1.25 |
| CRANKSHAFT KEYWAY WIDTH | 7 mm |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element Silent |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Transistorized Magneto |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 4 |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
