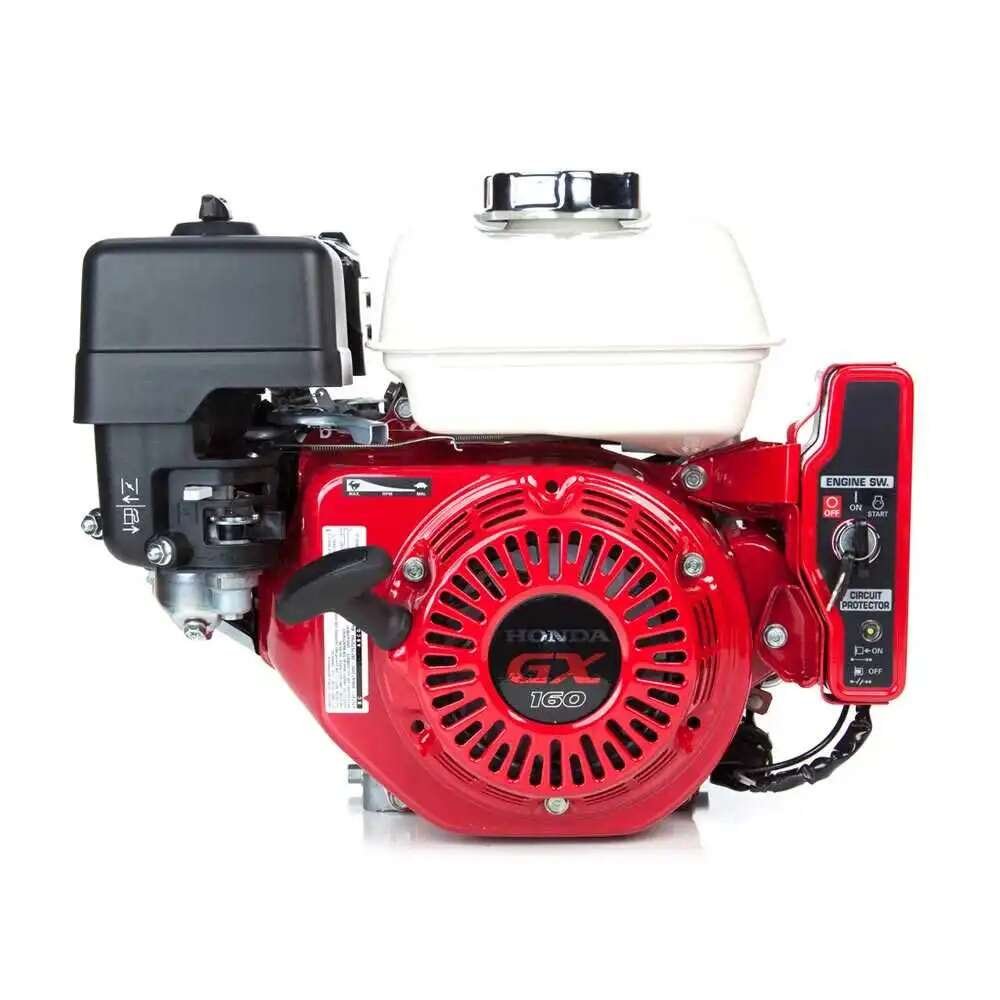

Honda GX160 QXE2 (GX160UT2QXE2) horizontal OHV engine is 160cc and puts out 4.8 net HP. This Honda GX has a 3/4″ x 2-7/16″ crankshaft (Tapped 5/16-24). The engine has 12V DC motor electric start, a 1-amp charging system, oil alert system, key switch, standard muffler and fuel tank. Honda GX160 commercial engines deliver economical and quiet operation without sacrificing superior performance and reliable power. Common applications for this engine include water pumps, agricultural equipment, tillers, generators, industrial equipment, pressure washers and more. Buyer protection package provides three-year commercial engine warranty. 50-State CARB Compliant. All engines purchased from us ship for free and are foam packed for added protection during transit.
Key Specifications
| BRAND | Honda |
|---|---|
| MODEL NUMBER | GX160-QXE2 |
| REPLACES MODELS | GX160UT1QXE2, GX160-T1QXE2, GX160-U1QXE2, GX160-QXE2, GX160-UT1-QXE2 |
| WARRANTY | 3 Year Consumer & Commercial |
| SHIPPING WEIGHT | 41 |
| DISPLACEMENT | 163cc |
| STARTER TYPE | Electric & Recoil |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 3/4″ x 2-27/64″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 2-27/64″ |
| CRANKSHAFT END TAPPED SIZE | 5/16 – 24 |
| CRANKSHAFT KEYWAY WIDTH | 3/16″ |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Cast Iron |
| AIR CLEANER TYPE | Dual Element |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| LOW OIL SHUTDOWN | No |
| IGNITION SYSTEM | Transistorized Magneto |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| BOLT CIRCLE | 3 – 5/8 |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
