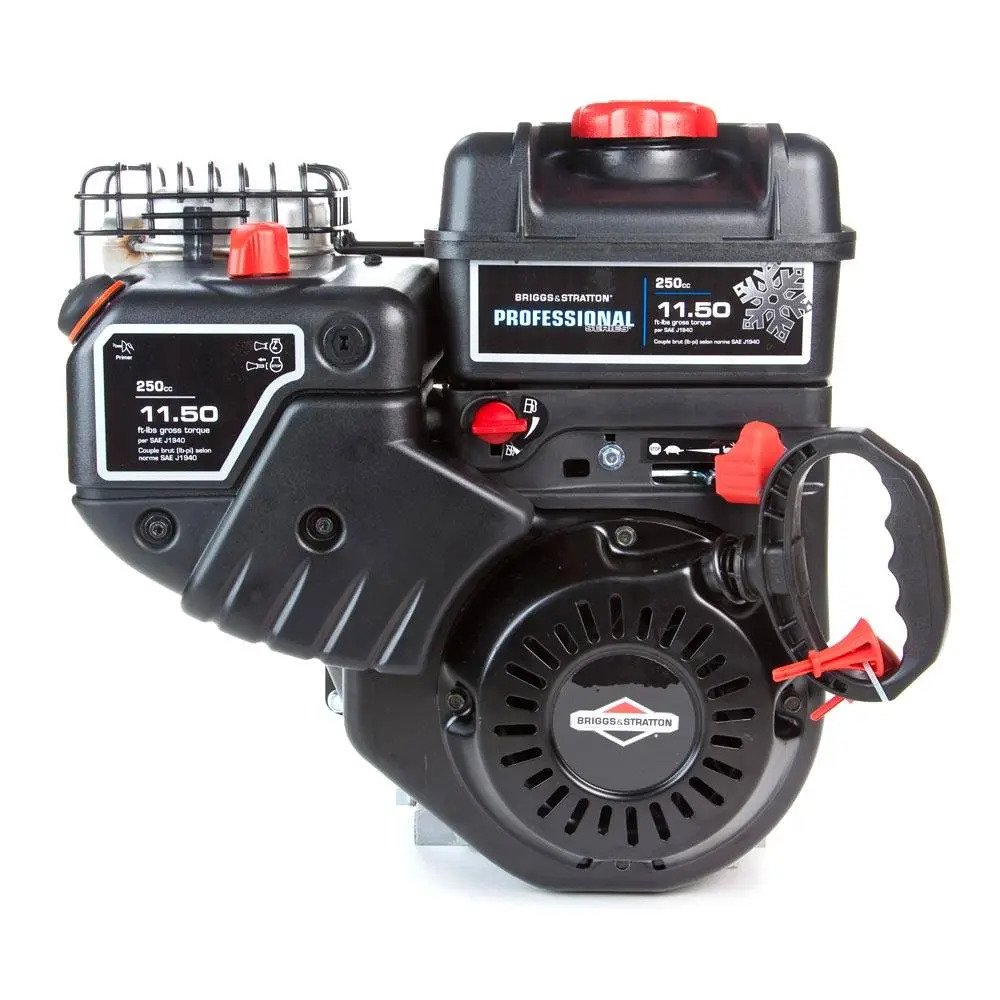

Briggs Stratton Snow Engine 15C107-0019-F8 Professional Series Horizontal, 250cc, 11.50 Gross Torque, 3/4 inch x 2.43 inch Crankshaft, 3/16-inch Keyway, 5/16-24 Tapped, 110V AC Electric Start, 1.5A DC Alternator
Key Specifications Briggs Stratton Snow Engine – 15C107-0019-F8n
| BRAND | Briggs Stratton |
|---|---|
| MODEL NUMBER | 15C107-0019-F8 |
| WARRANTY | 2 Year Consumer / 1 Year Commercial |
| SHIPPING WEIGHT | 50 |
| DISPLACEMENT | 250cc |
| STARTER TYPE | Electric with Recoil w/ Mit Grip Backup |
| CRANKSHAFT ORIENTATION | Horizontal |
| CRANKSHAFT TYPE | Straight |
| FUEL SYSTEM | Gasoline |
| GEAR REDUCTION | No |
| CRANKSHAFT DIMENSIONS | 3/4″ x 2.43″ |
| CRANKSHAFT DIAMETER | 3/4″ |
| CRANKSHAFT LENGTH | 2.43″ |
| CRANKSHAFT END TAPPED SIZE | 5/16 – 24 |
| CRANKSHAFT ROTATION DIRECTION (FROM PTO SIDE) | Counterclockwise |
| BEARING TYPE | Plain Mag |
| CYLINDERS | 1 |
| CYLINDER BORE TYPE | Aluminum Alloy |
| FUEL TANK | Yes |
| FUEL PUMP | No |
| OIL COOLER | No |
| OIL CAPACITY | 20 |
| LOW OIL ALERT | No |
| IGNITION SYSTEM | Electronic |
| CARBURETOR TYPE | Float |
| CHOKE CONTROL | Manual |
| MAX RPM | 3600 |
| CHARGING SYSTEM | 1.5 |
| FLYWHEEL | Heavy |
| NOTES | Engine Notes: |
| PTO HEIGHT | 4 – 11/64 |
